 CustomChill Recirculating Liquid Chillers offer state-of-the-art, cost-effective solutions to meet your critical cooling and/or heating applications. The CRAL150 series chillers are rated 150 watts cooling capacity. The CRAL150 free standing chiller offers a multitude of features.
Standard features include:
- Programmable digital PID system controller
- Low fluid level indicator or dry contact closure
- Leak-proof fluid inlet and outlet quick disconnect valves
- Highly reliable, environmentally safe thermoelectric cooling elements
- Efficient seal-less magnetic drive pump with brushless DC motor
- Quiet high performance fans
- Dual input power: 115/230 V, 50/60 Hz
Optional features include:
- RS232/RS485 communication port
- Higher flow and pressure capabilities
- Heating option, up to 500 Watts
- Flow control (alarm)
- Temperature alarm
Specifications PDF Version User Manual
| Model Number
|
CRAL150D-DUAL
|
| Input Voltage, VAC |
115 / 230 |
| Frequency, Hz |
50/60 |
| Current Draw, Amps |
2.5 / 1.25 |
| Cooling Capacity, (Watts/Btuh) |
150 / 512 |
| Max. Ambient Temperature, °C/ °F |
50 / 122 |
| Min.Ambient Temperature*, °C/ °F |
-10 / 14 |
| Max Flow Rate, lpm/gpm |
6 / 1.6 |
| Max Pressure @ 0 Flow, PSI |
14.7 |
| Chiller Fluid Capacity, ml/Gal |
500 / 0.13 |
| Noise Level, dBA |
45 |
| Heating Capacity**, Watts |
500 |
| Control Temperature Range***, °C/ °F |
-12 to 41 / 10.4 to 106 |
| Temperature Control Accuracy, °C/ °F |
± 0.10 / ± 0.18 |
| Dimensions |
|
| Height, in/mm |
10.0 / 254 |
| Width, in/mm |
7.75 / 197 |
| Depth, in/mm |
11 / 279 |
Notes:
| * |
Minimum ambient temperature is given for equipment performance only, it doesn’t take into consideration type of fluid used. To avoid fluid freezing, always use proper antifreeze. |
| ** |
Optional 500W heating feature available. |
| *** |
For fluid temperatures above 41°C, please consult factory. |

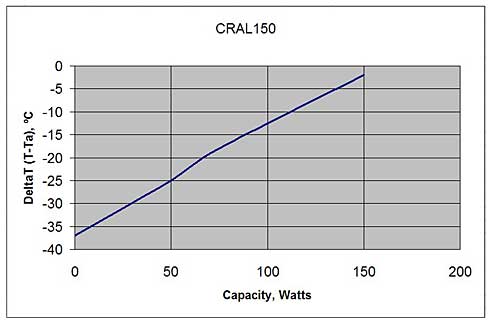

Thermal Performance
If the CRAL150 chiller does not exactly fit your needs, CustomChill also manufactures
custom chillers to your specifications.
